PRODUCTS
D35
STEEL - MINING - DEMOLITION
BULK HANDLING - CRUSHING - RECYCLING
CROWD COOLING - CEMENT - RENTAL
ODOUR CONTROL
The D35 is a high-performance Dust Suppression / Mist Cannon with 25-35 meter range used for dust, odour and air pollution control in different applications. Equipped with a robust frame the D35 is built to last and can be a mobile or permanent installation.
The D35 is well suited for heavy duty applications such as.
Features as electrict tilt, automatic main valve and remote control are standard. Automatic oscillation up to 360˚ to distribute water mist over large areas are also standard. The D35 is connected to a standard 16A socket. It can be powered by 400V/50Hz from the main grid or from a generator.
The flow rate is adjustable to suit different applications. The water mist droplet size is between 20-200 microns which makes the D35 ideal for various applications.
-
Effective range 25-35 meter
Area covered 3.800 m²
Voltage / Frequency 400 VAC / 50 Hz
Current consumption 14 Amps
Fan motor power 5,5 kW
Pump motor power 2,2 kW
Power connector 16 A - 5 pin
Water flow 12 - 60 LPM
Water connection Thread 1” BSP (DN25)
Required in pressure 2-12 bar
Water quality Portable / Filtered
Tilt angle -20˚ / +50˚
Automatic oscillation 10˚ to 360˚ steps of 10˚
Operating temp. +1°C to +50°C
Length with fork stand 1.160 mm
Width with fork stand 1.100 mm
Height with fork stand 2.070 mm
Dry weight 415 kg -
Electric tilt
Booster pump
Run dry protection
Filter system 300 micron
Water drain valve
Automatic oscillation system
Chassis with heavy duty fork pockets
Electric water main valve -
Remote control
Winter kit
Wheel set
Wall mounting
Dosing pump with 60 L tank
D60
STEEL - MINING - DEMOLITION
BULK HANDLING - CRUSHING - RECYCLING
CROWD COOLING - CEMENT - RENTAL
ODOUR CONTROL
The D60 is a high-performance Dust Suppression / Mist Cannon with 50-60 meter range used for dust, odour and air pollution control in different applications.
Equipped with a robust frame the D60 is built to last and can be a mobile or permanent installation.
The D60 is well suited for heavy duty applications.
Features as electric tilt, automatic main valve and remote control are standard. Automatic oscillation up to 360˚ to distribute water mist over large areas are also standard. The D60 is connected to a standard 63A socket. It can be powered by 400V/50Hz or 480V/60Hz from the main grid or from a generator.
The flow rate is adjustable to suit different applications. The water mist droplet size is between 20-200 microns which makes the D60 ideal for various applications.
-
Effective range 50-60 meter
Area covered 11.300 m²
Voltage / Frequency 400 VAC / 50 Hz
Current consumption 45 Amps
Fan motor power 18,5 kW
Pump motor power 2,2 kW
Power connector 63 A - 5 pin
Water flow 12 - 60 LPM
Water connection Thread 1” BSP (DN25)
Required in pressure 2-12 bar
Water quality Portable / Filtered
Tilt angle -20˚ / +50˚
Automatic oscillation 10˚ to 360˚ steps of 10˚
Operating temp. +1°C to +50°C
Length with fork stand 1.160 mm
Width with fork stand 1.100 mm
Height with fork stand 2.070 mm
Dry weight 445 kg -
Electric tilt
Booster pump
Run dry protection
Filter system 300 micron
Water drain valve
Automatic oscillation system
Chassis with heavy duty fork pockets
Electric water main valve -
Remote control
Winter kit
Wheel set
Dosing pump with 60 L tank
D45
STEEL - MINING - DEMOLITION
BULK HANDLING - CRUSHING - RECYCLING
CROWD COOLING - CEMENT - RENTAL
ODOUR CONTROL
The D45 is a high-performance Dust Suppression / Mist Cannon with 35-45 meter range used for dust, odour and air pollution control in different applications. Equipped with a robust frame the D45 is built to last and can be a mobile or permanent installation.
The D45 is well suited for heavy duty applications.
Features as electric tilt, automatic main valve and remote control are standard. Automatic oscillation up to 360˚ to distribute water mist over large areas are also standard. The D45 is connected to a standard 32A socket. It can be powered by 400V/50Hz or 480V/60Hz from the main grid or from a generator.
The flow rate is adjustable to suit different applications. The water mist droplet size is between 20-200 microns which makes the D45 ideal for various applications.
-
Effective range 35-45 meter
Area covered 6350 m²
Voltage / Frequency 400 VAC / 50 Hz (480@60Hz
Current consumption 19 Amps
Fan motor power 7,5 kW
Pump motor power 2,2 kW
Power connector 32 A - 5 pin
Water flow 12 - 60 LPM
Water connection Thread 1” BSP (DN25)
Required in pressure 2-12 bar
Water quality Portable / Filtered
Tilt angle -20˚ / +50˚
Automatic oscillation 10˚ to 360˚ steps of 10˚
Operating temp. +1°C to +50°C
Length with fork stand 1.160 mm
Width with fork stand 1.100 mm
Height with fork stand 2.070 mm
Dry weight 415 kg -
Electric tilt
Booster pump
Run dry protection
Filter system 300 micron
Water drain valve
Automatic oscillation system
Chassis with heavy duty fork pockets
Electric water main valve -
Remote control
Winter kit
Wheel set
Wall mounting
Dosing pump with 60 L tank

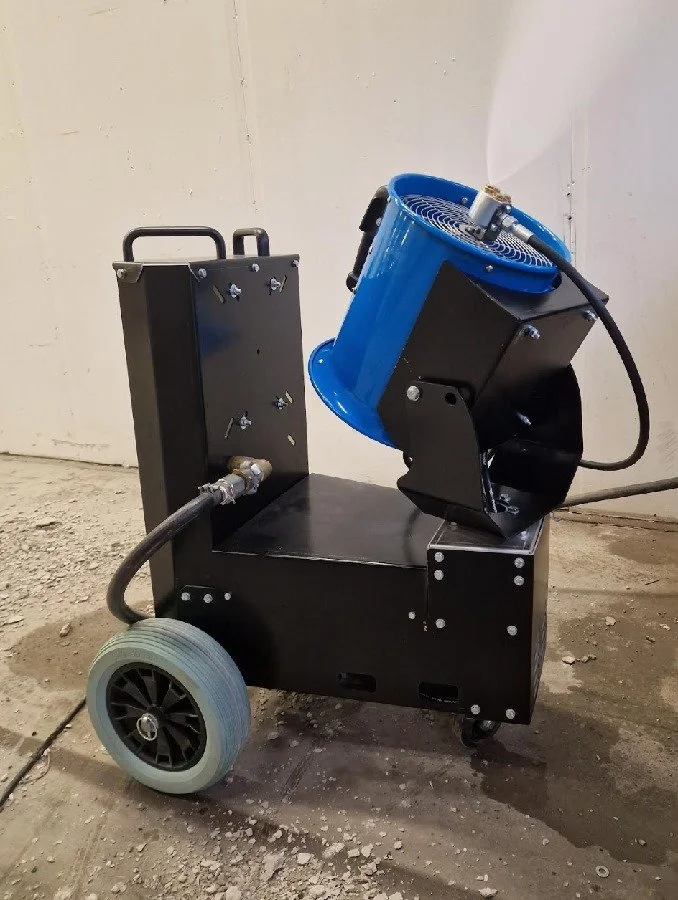

MOSQUITO 230V - 1 phase
DUZTECH MOSQUITO mist cannon is a small machine that can be moved by hand. Compact and light in weight makes it perfect for indoor demolition.
Standard is automayic swing operation to distribute the water mist over larger areas with a throwing distance of 10-15 m.
The unit feature low power consumption. It´s connected to a standard 1 phase 230V wall socket.
The water mist generated by this unit is extremely fine and therefore effective against airborne dust, but also for humidification when the ground/surface is sensitive for wetting. The MOSQUITO cannon are also suitable for odour control.
The MOSQUITO generates a water mist with droplet sizes 10-50 microns with a mean droplet size of 25 microns.
Droplet size: 10 - 50 microns
Mean droplet size: 25 microns
-
Fan motor rating 1,1 kW
Pump motor rating 0,6/1,5 kW
Current consumption 8/12 Amps
Specified voltage 230 AC
Frequency 50 Hz
Power connector size L-N-PE
(Schucko) (type F)Control panel Buttons
Dry weight 90 kg
Length 750 mm
Width 750 mm
Height 900 mm
Elevation, HAND -20 to +60˚
Throw (up to) 10-15 m
Water flow 2 LPM / 8 LPM
Water connection Thread 1” BSP
(DN25)
Required in pressure 2 - 10 bar
Nozzle pressure 70 bar
Filtration system 20 microns
Wheel set YES
Operating temp. +1°C to +40°C
Storage temp. -30°C to +60° -
Wall mounted edition available
